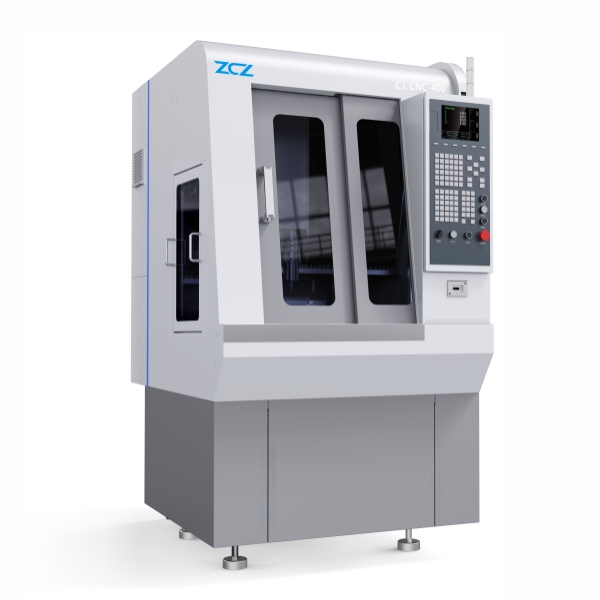

CNC 400 Milling machine-double spindle 3 Axis / 4 Axis
Double head, double Z axis and double frequency conversion

Non-metallic pattern carving, soft metal product processing, TR special machine, doble-station It can realize the simultaneous processing and double processin

  • Taiwan Delta servo motor

  • Huadiao electric principal axis*2   *3

  • 4th-axis rotary working platform

  • Oil cooling automatic circulating system
  •  Taiwan HIWIN screw with original packaging, German Rexroth linear guide rail

  • It can change the different fixtures and engrave the different types of product.

  • It can realize the engraving and milling of two similar workpieces and the independent engraving and milling.

  • It is flexible and convenient and has strong practicality.

  • The finish is good, and the precision is high.

Technical Parameters
Performance indexstandard value
Positional accuracy of X/Y/Z axes movement0.015mm
The accuracy of repetitive positioning of X/Y/Z/A axes0.010mm
Operating stroke of X/Y/Z axes400mm*300mm*200mm
A-shaft clamp fourth-axis precision      0.015mm
Table size       450mm*380mm
Pindle power            1.5KW*2/1.5KW*3
Spindle speed


Shank modeER16
Rapid feed rate20m/min
Working voltage            220V/50HZ
Driving systemSYNTEC system +hand box
Operating systemSYNTEC system +hand box
Air pressure0.6MPA
Machine tool weight(KG)1550KG
Machine dimension
