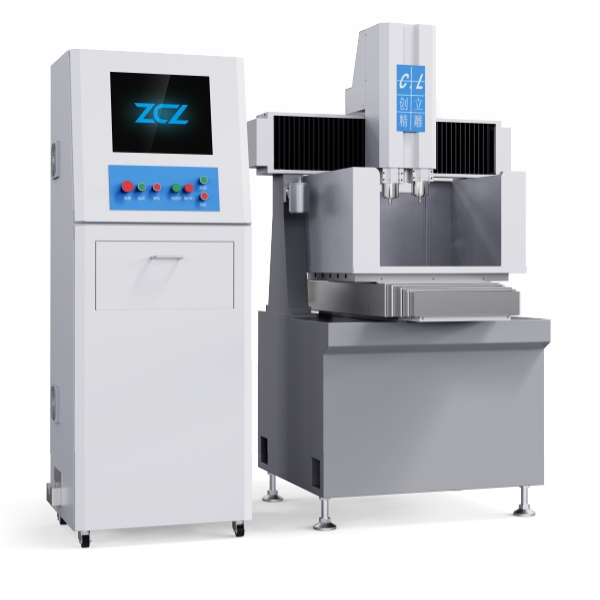

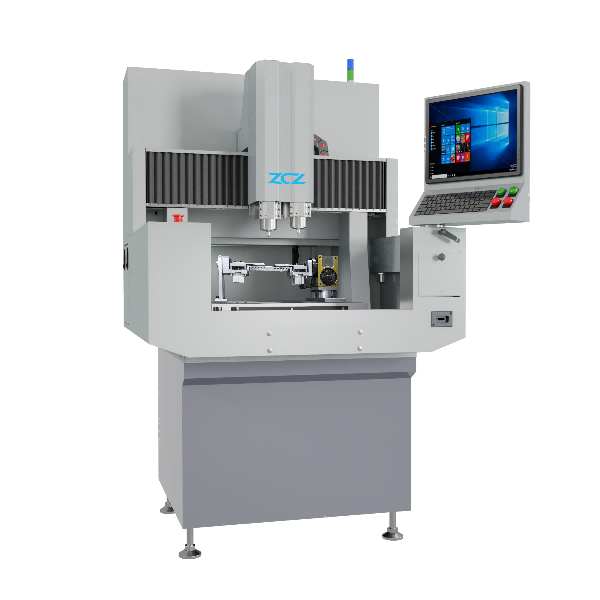

350 Milling machine -double spindle 3 Axis / 4 Axis

The front and temple of acetate frame has two engraving heads, so it can realize the

simultaneous processing of two pairs and independent double processing. It

is equipped with the independent rotating fourth-spindle for processing of

one-piece end piece position, and the processing is the stereoscopic

engraving surface processing.

  • Original Delta servo motor*5

  • Taiwan upper silk screw rod guide rail

  • Huadiao 0.8KW electric principal axis

  • 4th-axis rotary clamping fixture

  • Electric lubricating pump

  • Japan pneumatic components with original packaging

  • One-piece end piece position, stereoscopic engraving surface processing.

  • With double heads and double spindles, the processing speed is fast.

  • It has the fourth-spindle rotating fixture.

Technical Parameters
Performance indexstandard value
Positional accuracy of X/Y/Z axes movement0.015mm
The accuracy of repetitive positioning of X/Y/Z/A axes0.010mm
Operating stroke of X/Y/Z axes350mm*320mm*150mm
Spindle power             800w×2
Spindle speed1000-24000RMP
Spindle number15M/MIN
Shank modeER11
Working voltage220V/50HZ
Driving systemDelta servo x5 shaft
Operating systemNew generation system +hand box
Air pressure0.6MPA
Machine tool weight(KG)1300KG
Machine dimension1380*1100*1850mm
