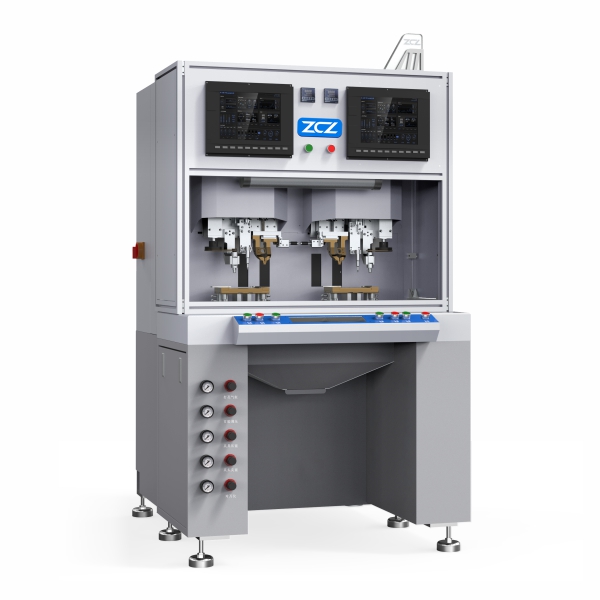

Automatic hinge machine

The operation speed and two-way combination, two machines together,

combined with the intelligent implant the end_piece and hinge perfect.

  • Original Delta servo motor*6

  • Japan panasonic speed-regulating machine

  • Specific imported transformer

  • Taiwan HIWIN screw and guide rail with original packaging

  • SMC / Air-tech air cylinder

  • Tungsten hinge mode

  • Multi-angle rotary clamping fixture

  • Japan pneumatic components with original packaging

  • It can save labor, trouble and time, and integrates the previous and subsequent inlaying procedures.

  • It can automatically measure the height, thus keeping the consistent height of end piece to be hinged.

  • With the automatic drilling slot, four edges around the hinge to be inlaid keep clean and bright.

  • The fixture adjustment is convenient, without programming, fast and safe

  • Processing accuracy 0.005MM, processing speed 180-200 hours per hour.

Technical Parameters
Performance indexstandard value
Positional accuracy of X/Y/Z axes movement        0.015mm
Operating stroke of X/Y/Z axes350mm*150mm*200mm
Spindle power  50w
Spindle speed          900RMP
Spindle number    45M/MIN
Working voltage220V/50HZ
Driving systemDelta servo x6 shaft
Operating systemNew generation system x2 sets
Air pressure0.6MPA
Machine tool weight(KG)1000KG
Machine dimension1000*1380*1800mm
